Heating Instruments
LABORATORY WATER BATH
- Multitudes of Bath size for Varities of application expectation
- Small to large capacity Bath, heater element top cover & other wetted Parts with 304 grade S. Steel for years of life & easy of daily clean.
- S. Steel perforated 304 grade diffuser plate.
- Drain Plug made of brass duly Nickled on the back of the bath.
- Full feature with Digital Temp. Controller / Indicator & Microprocessor Based PID Temp. Controller Cum Indicator (On customer demand)
- Stability up to 0.5°C or better
- Better mineral / glasswool insulation to keep the surface comfortable to work
- Low water cut off system / water level with Indicator (Provided on customer request)
- Best quality Bi-Metallic capillary Thermostat to give accurate results
Specifications :
| Model | 6 Holes , 12 Holes Single walled | 6 Holes , Double walled | 12 Holes Double walled | 2 Racks, Double Walled | 4 Rack , Double Walled | 6 Racks, Double Walled | 8 Racks Double Walled |
|---|---|---|---|---|---|---|---|
| Capacity "L" | 8 Ltrs. 15 Ltrs. | 8 Ltrs. | 15 Ltrs. | 14 Ltrs. | 18 Ltrs. | 25 Ltrs | 30 Ltrs. |
| Heater Wattage "W" | Kettle Element 1.5/ 2.0KW | 1.5 KW | 1.5 KW | 1.5 KW | 2.0 KW | 2.0 KW | 2.0 KW |
| Shelves | - | - | - | - | - | - | - |
| Dimensions (Internal mm) | 300 x 250 x 100 x 425 x 325 x 100 | 300 x 250 x 100 | 425 x 325 x 100 | 300 x 250 x 175 | 325 x 300 x 175 | 450 x 300 x 175 | 600 x 300 x 175 |
| Bath Opening | 6 Holes of 3" Dia , 12 Holes of 3" Dia | 6 Holes of 3" Dia | 12 Holes of 3" Dia | SS Plain Lid | SS Plain Lid | SS Plain Lid | SS Plain Lid |
Applications :
Sample Maintaining Testing Calibration & Process Control
Technical Parameters :
Control Panel : Temp. Controller, With Mains & Load Indicator, Mains Switch
Temperature Range : Ambient to 95 °C
Temperature Stability : +-0.5°C or better/ +- 0.2°C or better Incase of Digital Temp. Controller or Microprocessor Based PID Temp. Controller
Housing Material : CRC / Mild Steel Sheet with Powder Coated
Optional : Outer body of S.S. 304 grade also can be made on customer demand
Interior Tank : S. Steel 304 grade water Tank duly sealed leak proof
Insulation : Glasswool/ Mineral Wool
Power Consumption : 220/230V, AC Supply +- 10% 50Hz
Duty Cycle : Continuous ( Do check water level as per test requirement )
SISCO LABORATORY WATER STILL
- Precise pure Pyrogen free distilled water Design feature ensure economy in operation
- All S. Steel 304 grade body
- Unique design of water over flow & water level & outlet
- Kanthal A-1 super quality kettle element for better result / ejection type
- Condenser tube & Jacket all made of S. Steel 304 grade sheet / pipe
- Condenser tube can be dismantled by removing the wing nut which holds condenser & Jacket
- With wall bracket to be fixed on wall on which the still can rest
Specifications :
| Capacity (Ltrs.) | 2 | 4 | 6 |
| Heater Wattage "W" | 1.5 KW | 3 KW (2 x 1.5KW) | 4.5 KW (3 x 1.5 K W) |
Applications :
Useful for Hospitals, Medical Research lab. Biotech lab. & Industrial application etc.
Technical Parameters :
Duty Cycle : Check water Level at regular interval
Power Consumption : 220/230V AC +-10% 50Hz single phase
Material : All Stainless Steel 304 grade
WATER DISTILLATION UNIT -: TABLE / FLOOR MODEL
Water Distillation Unit – Table/Floor Model offered features on/off switch based Control Panel with low water cut-off probe as well as mains/heating indicators provided as a safety feature. further, the system works on 220volts ac/430 volts, 3 phase supply and comes in capacities of 10 liters /hr and 20 liters /hr.
Features :
Works as free standing unit System designed to handle production of pyrogen free distilled water for optimum performance support, all contact parts are made using stainless steel 304 grade Coming fitted with efficient electrical immersion heater . Features low water level cut-off device that provides for safety of heating elements . Control panel comes fitted with on/off switch as well as mains/heating indicators & low water cut-off probe provision as safety features . Works on 220volts ac/430 volts, 3 phase supply .
Specifications :
| Control Panel | Fitted With ON/OFF Switch |
| Safety Feature | Low Water Cut-Off Probe, Mains/Heating Indicators |
| Working | 220Volts AC/430 Volts, 3 Phase Supply |
| Capacity | 10.0 Liters /Hr, 20.0 Liters /Hr |
Applications :
For Distillation of Water in General & Lab Use

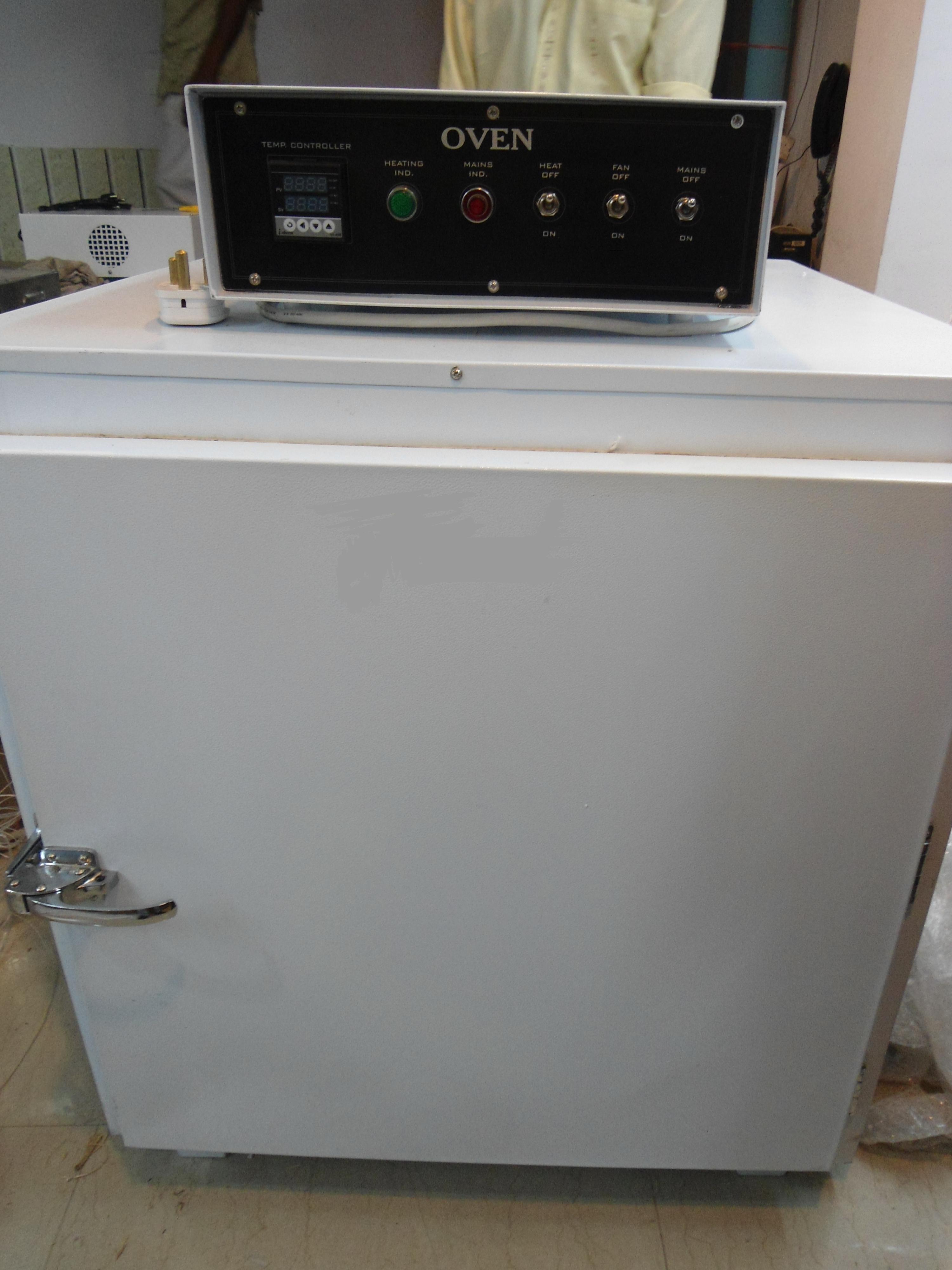

HIGH TEMPERATURE HOT AIR OVEN
- Precise hot Air Drying & Sterilization.
- Better Mineral / Glasswool / Blanket Insulation keeps the surface of the instruments from being Burnt
- Silent Hot Air Blower, unique Design of Air Circulation provide throughout uniform air movement & improved Temperature distribution
- Unique design of Ventilation keep the surface of the instrument from being burnt even when the instrument i.e. Oven Temperature maintained at above 200°C
- Polish 304 grade S. Steel interior, corrosion resistant long life operation having adjustable shelves to make more space for different height.
- Kanthal A-1 super quality coil shaped heaters duly embedded / wound on the bottom only for better accuracy.
- Best quality Bi-Metallic Hydraulic capillary
Thermostat Model
Models :
- Thermostat Model
- Full Features with Digital Temperature Controller Cum Indicator
- Microprocessor Based PID Temperature Controller Cum Indicator having alarm
Digital Model
Applications :
Sterilization & Storage for Pharmaceutical, Agriculture, Medical & food industries, education Institute, Bio-Tech, Laboratory requiring controlled Temperature above ambient.
Microprocessor Based Model
Specifications :
| Capacity (Ltrs.) | Interior (mm) | Shelves |
|---|---|---|
| 28 | 300x300x300 | 2 |
| 45 | 300x350x350 | 2 |
| 95 | 450x450x450 | 2 |
| 125 | 450x450x605 | 2 |
| 224 | 605x605x605 | 2 |
| 336 | 605x605x900 | 3 |
| 252 | 605x450x900 | 3 |
Technical Parameters :
Temperature Range : Ambient to 300°C, Controlled from Ambient - 300°C.
Temperature Stability : +-2°C
Housing Material : CRC/Mild Steel with Powder Coated
Duty Cycle : Continuous
Interior : S. Steel 304 grade heavy gauge to withstand Temp. up to 300°C
Insulation : High Temperature Ceramic Blanket
Power Consumption : 220/230V, AC +- 10% 50Hz 440V 3 Phase for bigger size as per Temperature requirements
INDUSTRIAL PURPOSE OVEN / DRIER
Features :
- Precise Hot Air Drying Oven & sterilization better mineral / glasswool Insulation to avoid heating loss during use
- Low Noise Blower, unique design of Air Circulation provide throughout the chamber.
- Unique design of ventilation keeps the surface of the Instruments i.e. oven / Drier Temp. Maintained at 200/250°C.
- Polish S. Steel sheet 304 grade interior corrosion resistant long life operation having adjustable shelves to make space for difference height.
- Kanthal A-1 Superior quality heater fitted on the sides & at the back of the drier /Oven (As per size & customer requirement).
- Full features Digital Temp. Controller Cum Indicator & Microprocessor Based PID Temperature Controller Cum Indicator having alarm facility for low & high Temp. (On customer requirement)
- Optional : Digital Timer 0-99Hrs
- 0-999 Min/Hrs
- Inner M. S. Sheet / GI Sheet Chamber instead of S. S. 304 Grade Sheet
- RS 232 Communication Interface.
Specifications :
| Model | D.Door / Single Door | Double Door | Double Door |
|---|---|---|---|
| Interior (mm) | 900 x 900 x 900 | 900 x 950 x 1200 | 1200 x 1200 x 1200 |
| Heater Wattage "W" | 4 KW | 4.5 KW | 4.5/ 5.0 KW |
| Shelves | 2/3 | 3 | 3 |
* Dimensions are expressed in (Width x Depth x Height)
Applications :
Drying, Paint, Bitumen & Rubber Industries, Medical & Food Industries, Institute, Agriculture requiring Controlled Temp above Ambient
Technical Parameters :
Temperature Range : Ambient to 250°C, Controlled from 50°C - 250°C.
Temperature Stability : +-1°C or 2°C or better In Microprocessor Based PID Temp. Controller model +- 0.5°C
Housing Material : CRC / Mild Steel heavy duty having angle Iron Frame at the bottom with castor wheel duly painted / Powder Coated
Optional : Double Colour, Door / Top & Panel Grill on request
Control Panel : Digital Temp. Controller, Load & Temp. Indicator, Fan Switch, Mains Switch.
Optional : Voltmeter / Digital Timer
Power Consumption : Single Phase 220/230V, AC +- 10% 50Hz & 3 phase 440V
Safety Function : Temp. Overshoot High & Low Alarm with Safety Control
Duty Cycle : Continuous
SISCO LABORATORY HOT AIR OVEN GMP MODEL
- Designed to meet widest application for all Modern Laboratories, Hospital, Research Institutions and R & D centers
- Double Walled Oven Universal (Memmert Type) is elegantly designed in various applications for microbiology, cell cultivation of animals and plants, food studies; general heating, drying, sterilizing, baking, to perform: material tests, ageing of computer chips, run complex experiments with highly sensitive loads, drying or tempering electronic components, hardening plastic resin. Our universal oven stands for unparalleled precise, even and gentle temperature control.
- Double Walled Oven Universal (Memmert Type) is low cost options for heating- for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research.
SALIENT FEATURES & CONSTRUCTION
- Outer & Inner chamber is made of STAINLESS STEEL 304 Grade Matt Finish, ( Inner Chamber S.S -316 also available)
- Forced convection system by motor & blowers fitted ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber & no cross contamination.
- High quality compressed glass wool insulation between inner wall and outer wall to prevent heat - loss.
- Choice of Solid State controller with Digital indicator or Microprocessor based PID Temp. controller.
- Available with S. S. wire mesh shelves.
- Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
- Door Gasket fixed on the double walled door for proper sealing.
- Fitted with heavy hinges with a ball catcher, spring loaded door closing device. Door is duly insulated.
- Adjustable two ventilation slides control inner air / vapour circulation.
- Beaded heating elements made of high quality Nichrome/Kanthal wire are placed in ribs, at bottom and sides for uniform heat distribution.
- Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
- Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 250°C ± 1°C. fitted on the front panel for easy operations.
- Different programme functions can be designed for a wide variety of applications, and even when used
- Temperature is displayed by Digital LED with SV and PV display at front of the oven.
- Front Panel is provided with ON/OFF switch, temperature controller and indicators
- Supplied with cord and plug.
- Operating Voltage: 220 Volts AC (50 Hz).
|
Models |
Material of Construction |
|
|
Interior |
Exterior |
|
|
GMP |
S.S.304 Dull Finish |
S.S.304 Dull Finish |
|
GMP/316 |
S.S.316 Dull Finish |
S.S.304 Dull Finish |
OPTIONAL ACCESSORIES
- Microprocessor based PID Temp. Controller with port for printer output. RS 485 for PC communication with Software Meta-Logger
- Safety controller & alarm facility in case of Temperature overshoot.
- IQ/OQ/PQ Documents.
- Site Calibration / Validation.
- Custom built can be available of any size on request.
- Electronic Digital Timer Range 0 to 999 minutes
- Castor wheel for easy movability
|
||||||||||||
|
Model No. |
SIS-HO-GMP1 |
SIS-HO-GMP2 |
SIS-HO-GMP3 |
SIS-HO-GMP4 |
SIS-HO-GMP5 |
|
||||||
|
Inner Chamber in MM (W x H x D) |
300x300x300 |
355x355x355 |
455x455x455 |
455x455x605 |
605x605x605 |
|
||||||
|
Inches Conversion |
12 x 12 x 12 |
14 x 14 x 14 |
18 x 18 x 18 |
18 x 18 x 24 |
24 x 24 x 24 |
|
||||||
|
Capacity |
28 ltrs |
43 ltrs |
90 ltrs |
105 ltrs |
215 ltrs |
|
||||||
|
Heating Load |
1.0 0 KW |
1.00 KW |
1.50 KW |
1.50 KW |
2. 50 KW |
|
||||||
|
No. of Shelves |
2 |
2 |
2 |
2 |
2 |
|
||||||
|
Temperature Range |
50°C to 250°C |
|
||||||||||
|
Temp. Controller |
By Microprocessor Based PID Digital Temperature Indicator cum Controller. |
|
||||||||||
|
Temp. Sensitivity |
+1°C. |
|
||||||||||
|
Air Circulation |
By forced convection system |
|
||||||||||
|
Relay |
Solid state electronic relay with protective heat sink. |
|
||||||||||
|
Auto Tuning System |
||||||||||||
SISCO LABORATORY HOT AIR OVEN
- Precise hot Air Drying & Sterilization.
- Better Mineral / Glasswool / Blanket Insulation keeps the surface of the instruments from being Burnt
- Silent Hot Air Blower, unique Design of Air Circulation provide throughout uniform air movement & improved Temperature distribution
- Unique design of Ventilation keep the surface of the instrument from being burnt even when the instrument i.e. Oven Temperature maintained at above 200°C
- Polish S. Steel interior, corrosion resistant long life operation having adjustable shelves to make more space for different height.
- Kanthal A-1 super quality coil shaped heaters duly embedded / wound on the sides & bottom for better accuracy.
- Best quality Bi-Metallic Hydraulic capillary
Thermostat Model
MODELS:
- Thermostat Model
- Full Features with Digital Temperature Controller Cum Indicator
- Microprocessor Based PID Temperature Controller Cum Indicator having alarm
Digital Model
Applications :
Sterilization & Storage for Pharmaceutical, Agriculture, Medical & food industries, education Institute, Bio-Tech, Laboratory requiring controlled Temperature above ambient
|
Capacity (Ltrs.) |
28 |
45 |
95 |
125 |
224 |
336 |
252 |
|
Interior (mm) |
300x300x300 |
300x350x350 |
450x450x450 |
450x450x605 |
605x605x605 |
605x605x900 |
605x450x900 |
|
Heater Wattage "W" |
1.0 KW |
1.0 KW |
1.5 KW |
2.0 KW |
2.5 KW |
3.0 KW |
2.5 KW |
|
Shelves |
2-Jan |
2-Jan |
2 |
2 |
2 |
3 |
3 |
Technical Parameters :
Control Panel : With Mains & Load Indicator, Fan Switch & Mains Switch, Temperature Controller
Temperature Range : Ambient to 250°C, Controlled from 50°C - 250°C.
Temperature Stability : +-1°C or better, In Microprocessor Based PID Temp. Controller +- 0.5°C or better.
Housing Material : CRC/Mild Steel with Powder Coated
Optional : Double Colour Gate, Top & Control Panel (on Customer Demand / request)
Power Consumption : 220/230V, AC Supply Single Phase 50 Hz
Safety Function : Temperature Over Shoot High & Low Temperature Alarm (Optional).
Optional : • Outer S. Steel 304 grade body (On customer demand) • Rs. 232 Communication Interface. • Front Toughened Glass door for Temp. up to 200°C Working
Duty Cycle : Continuous
Microprocessor Based Model
Bacteriological Incubator
Features :
- Double walled construction with inner chamber made of Highly Polished Stainless Steel and outer wall of powder coated GI sheet.
- The gap (65mm) between the walls is filled with special grade insulation material for proper insulation and to avoid heat losses.
- Inner chamber fabricated with ribs for adjusting shelves to convenient height.
- Supplied with three removable shelves made of S.S. Sheet.
- Fitted with Air Circulating Fan.
- With two doors. The outer door is insulated and is fitted with heavy hinges. Inner door is made of glass panel mounted in a wooden frame to facilitate inspection of samples, without disturbing the chamber temperature.
- Heating elements made of high grade imported nichrome wire should be insulated inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.
- Temperature should be controlled by Micro processor based PID temp. controller cum indicator.
- Air ventilators port are provided on sides at top for ventilate fumes and to assist convection process.
- Control Panel:The equipment should be provided with a panel having a temperature control knob, ON/OFF switch and indicating light
- Supplied with cord and plug. Suitable to operate on 220 V single phase, 50 Hz, AC supply.
Specifications :
| Size | 900 x 900 x 1200 mm |
| Heater Wattage "W" | 4 KW |
| Shelves | 3 |
| Temperature Range | Ambient to 110 °C |
| Temperature Stability | +-1°C In Microprocessor Based PID Temp. Controller |
| Housing Material | G.I Sheet Powder Coated |
| Digital Setting | 0.1 °C |
| Digital Resolution | 0.1 °C |
| Power Consumption | Single Phase 220/230V, AC +- 10% 50Hz & 3 phase 440V |
| Safety Function | Temp. Overshoot High & Low Temp. Alarm |
| Interior | Polish S.S. 304 grade Sheet |
| Insulation | Glasswool/ Ceramic Blanket |
| Front Door | Glasswool/ mineral wool insulated door with glass window |
| Power Consumption | 220/ 230V AC Supply +-10% 50 Hz |
| Duty Cycle | Continuous |
*Dimensions are expressed in (Width x Depth x Height)
PRECISION LABORATORY INCUBATOR
Features :
- Precise Sterilization, Incubating & drying in one unit.
- Better mineral / glasswool blanket insulation keeps the surface of the Instrument from being burnt.
- Silent Hot Air blower unique Design of air circulation for uniform Air movement
- Unique design of Ventilation keeps the surface of the instruments from being burnt.
- Polish 304 grade S. Steel interior corrosion resistant long life operation having adjustable shelves to make more space for different height.
- Kanthal A-1, Super quality coil shaped heaters duly embedded / wounded on the sides & bottom for better accuracy.
- Full feature with Digital Temp. Controller Cum Indicator & Microprocessor Based PID Temp. Controller cum Indicator, having safety alarm facility (on customer demand)
- Best quality Bi-Metallic Hydraulic Capillary Thermostat to give accurate result
Specifications :
| Size (Inch) | 18x18x18 |
| Capacity "L" | 95 |
| Heater Wattage "W" | 500 W |
| Shelves | 2 |
Applications
- Incubation, Sterilization & storage for pharmaceuticals, agriculture, medical & food industries, Bio Tech Laboratories & Educational Institute, requiring Controlled Temp. Above ambient.
Technical Parameters :
Temperature Range : Ambient to 80 °C
Temperature Stability : +-1°C In Microprocessor Based PID Temp. Controller +- 0.5°C Or better
Housing Material : CRC / Mild Steel with Powder Coated
Optional : Double Colour Gate Top & Panel on request
Digital Setting : 0.1 °C
Digital Resolution : 0.1 °C
Power Consumption : Single Phase 220/230V, AC +- 10% 50Hz
Optional :Outer S.S. 304 grade body on customer demand RS 232 Communication Interface Inner Acrylic clear door
Interior : Polish S.S. 304 grade Sheet
Insulation :Glasswool/ Ceramic Blanket
Front Door :Glasswool/ mineral wool insulated door with glass window
Power Consumption :220/ 230V AC Supply +-10% 50 Hz
Duty Cycle :Continuous
BOD INCUBATOR / FREEZERS (REFRIGERATED) ECO-FRIENDLY
Features :
- Refrigerated Insulation & Freezing in one unit.
- Better mineral & Puf Insulated to keep the surface Temp. of body comfortable & avoid Cooling loss.
- Silent energy saving Kirloskar/ Tecumseh compressor, Designed to circulate uniform air through out the chamber with better imported coil condenser copper coil, improved Temperature distribution
- Polish 304 grade S. Steel interior corrosion resistant long life operation having adjustable shelves to make more space for different Height.
- Kanthal A-1 tubular heater is fitted for better accuracy.
- Safety Controller are provide with the Digital Temperature Controller Cum Indicator
- Full features with Microprocessor Based PID Temperature Controller Cum Indicator with Voltmeter .
- Choose among the model with window front glass door or inner Perspex / Acrylic sheet full view door to observe the Test Process inside the incubator as desired while keep Temp. uninterrupted.
- Angle Iron Frame at bottom with castor wheel for easy movement.
- Fitted with 2 Nos. Fan (One for Cooling & One for Heating inside the chamber)
Specifications :
| Capacity (Ltrs.)Interior (mm) | 112 x 455 x 610 x 410 x 4 Cuft. | 171 x 505 x 830 x 415 x6 Cuft. | 280 x 570 x 875 x 550 x 10 Cuft. | 336 x 900 x 650 x 550 x 12 Cuft. |
| Heater Wattage "W" | 250 W | 250 W | 250 W | 500 W |
| Shelves | 2 | 3 | 3 | 3 |
Applications
- Incubation for BOD & COD Determination, Storage for BOD Samples, General Incubation at 37°C Vaccine keeping, fermentation study stability Test.
Technical Parameters :
Temperature Range : 5°C - 50°C
Temperature Stability : +-0.5°C Or Better
Housing Material : CRC / Mild Steel duly power Coated
Optional : Double Colour Gate, Top & Grill
Power Consumption : 220/ 230V AC supply +- 10% 50Hz.
Safety Function : Safety Controller for Safety of Digital Temp. Controller cum Indicator & Cooling Compressor
Optional : RSS 232 Communication Interface
Compressor : Kirloskar/ Tecumseh Model as per size requirement
Refrigerant : R 134
Duty Cycle : Continuous
Interior : illumination provide inside the chamber
Optional : Illumination of 3 Fluorescent tube
- 2Ft. for 4, 6, 10, 12 Cuft. BOD
- 24 Hrs. Cyclic Manual Timer
- Voltage Stabilizer, Capacity as per size / Cap. requirement
STABILITY/HUMIDITY TEST CHAMBER
- Precise Hot Air & Humidity
- Better Mineral / Glasswool / Puf Insulation Keep the surface Temperature comfortable & Avoid Heat & Humidity Loss.
- Silent Hot Air Blower, Unique design of Air Circulation & Humidity circulation & improved Temperature / Humidity distribution.
- Unique design of Ventilation.
- Polish 304 grade of S. Steel interior Corrosion resistant long life operation
- Kanthal A-1 Tubular heater is fitted for better circulation
- Safety Controller are provide with the Digital Temperature Controller Cum Indicator
- Kanthal A-1 steel Tubular heater J shape is fitted in the steam Bath for long life & better result.
- Choose among the models with window front glass door or inner Perspex / Acrylic sheet Door with full view to observe the Test process inside the chamber while keep Temperature uninterrupted.
- Full feature with Temp. Controller i.e. Thermostate Bi-Metalic Capillary type for both Dry & Wet Temp. Control or Digital Temp. Controller Cum Indicator & Microprocessor Based PID Temp. Controller Cum Indicator
- Angle Iron frame with castor wheel for easy movement (for Refrigerated model )
- Fitted with 02 Nos. Fan for cooling & heating (For Refrigerated Model)
- Filled with 02 Nos. Circulation motor for water injection in routine model inside the control unit & Chamber.
- Humidistate is placed inside the chamber to control requested humidity.
- Humidity can be controlled by Digital Temp. & Humidity (Both automatically on customer requirement)
- Wet Temp. is controlled by Bi-Metalic Thermostate Connected to Water Bath placed in the control unit having water level. (Nozzle for Water inlet & outlet & overflow)
Specifications :
| Model No. | SC-4 | SC-6 | SC-10 |
|---|---|---|---|
| Usable Space in mm | 610 x 450 x 410 | 845 x 500 x 400 | 870 x 570 x 560 |
| Capacity | 4 Cuft | 6 Cuft | 10 Cuft |
| Approx Volume | 113 | 173 | 282 |
| No. of Shelves | 2 | 2 | 3 |
| Temperature Range | 5°C to 70°C (Resolution 0.1°C) | ||
| Temperature Controller | By Digital T emperature Indicator | ||
| Temp. Accuracy | ±5°C | ||
| Humidity Range | 50% to 90% at cool temperature | ||
| Humidity Accuracy | ± 5%RH | ||
| Display | LED Display | ||
| Relay | Solid state electronic relay with protective heat sink | ||
| Air Circulation | By forced convection system | ||
| Insulation | By High density PUF insulation | ||
| Operations | Nearly silent operation with ultra-low vibration | ||
| Voltage Indicator | By Volt Meter fitted on Panel | ||
| High Voltage Protection | Through automatic voltage stabilizer (Optional) | ||
| Electric Supply | 220/230V AC, 50/60Hz | ||
Applications
- Tissue Culture, Pharmaceuticals, Agriculture, Cable Industry, Paper , PVC & Cement Industries Electrical Industries.
HEATING MANTEL
- Small & Large capacity Mantle
- Electrical Heated hard knitted glass yarn without joint
- One pcs. Spun body made from non-rusting Alum. Duly powder coated & stove enamel painted
- Full feature panel with ER / Temp. Controller, Temp. Indictor & Mains Switch
- Better mineral / Glasswool Insulated
- Useful for heating inflammable liquids.
Specifications :
| Capacity (L) | 250 ml, 500 ml | 1 Liter, 2 Liter | 3,4,5 Liter |
|---|---|---|---|
| Heater Wattage "W" | 200W, 200W | 300W, 450W | 2 x 300W, 2 x 500W, 2 x 500W |
Applications
- For Research Lab. Pharmaceutical Chemical/ Glass Plants, Bio Tech Lab, Educational Institute.
Technical Parameters :
Temperature Range : Ambient to 350°C
Power Consumption : 220/230V AC +-10% 50Hz
Housing Material : One Pcs. Alum. Spun body Painted/ Powder Coated
Insulation : Mineral / Glasswool
Optional : Double Colour body (On customer request)
Control Panel : ER, Temp. Indicator & Mains Switch
HIGH TEMPERATURE MUFFLE FURNACE
FEATURES :
- The Furnace Casing is fabricated in Heavy Duty Construction with M.S Angle Frame with Channel Supports & Double Walled Sheet Steel Insulated Panel in Modular Construction with Weiled & Bolted Joints.
- DOOR-: Horizontal opening type door is provided with adequate Thermal Insulation
- HEATING CHAMBER -: Silicon Rods are provided in case of High Temp. 1450°C.
- Chamber construction includes a long life grooved refractory chamber element.
- Temperature Indication & Control : Auto tune Microprocessor based PID Digital Temperature Indicator – cum – controller for higher temperature accuracy with suitably located Pt/Rh type thermocouple sensor for higher Accuracy
- Unique design of ventilation / Chimney provided at the back of the Muffle Furnace (For Fumes outlet)
- High Temp. Furnace are of two types -:
- “HTM----/1P” Single Phase Furnace
- “HTM----/3P” Three Phase supplied with Transformer unit & Pt-Pt RH Thermocouple its control manually & automatically the Amps. Of silicon rods as per Temp. Requirement.
“HTM/1P” (Single Phase)
Furnace Control Panel Consists of
- Step Down Transformer 80 Ampere
- Digital Temperature Controller.
- Ampere Meter.
- Complete Internal Wiring.
- Relay.
“HTM/3P” Three Phase
Specifications :
| Model | HTM0944/1P | HTM1055/1P | HTM1266/1P |
|---|---|---|---|
| Interior (mm) (HxBxL) | 225 x 100 x 100 (9”x4”x4”) – Single Phase | 250x 125 x 125 ( 10”x5”x5”) – Single Phase | 300 x 150 x 150 (12”x6”x6”) – Single Phase |
| Heater Wattage "W" | 1450°C/ 3.0 KW | 1450°C/ 4.0 KW | 1450°C/ 4.0 KW |
*Dimensions are expressed in (Depth x Height x Width )
Applications
- For Calibration, Research Lab. Mining Industries, Industrial application
Technical Parameters :
Control Panel : Microprocessor Based PID Digital Temperature Indicator-cum-Controller.
Temperature Range : Ambient to 1400 °C, Working Temp. - 1400°C
Temperature Stability : +-1°C or better
Duty Cycle : Continuous
Housing Material : CRC / Mild Steel Sheet duly Powder Coated
Power Consumption : Single Phase 220/230V, AC +- 10% 50Hz & 3 phase 440V
Optional : RS 232 Communication interface
LABORATORY ELECTRICAL MUFFLE FURNACE
FEATURES :
- Outer casing is made of Double walled Thick / CRC/Mild Steel Sheet duly powder coated
- Better ceramic Blanket High Temp. Insulation to avoid heat loss.
- Chamber construction includes a long life grooved refractory chamber to support Kanthal heating Element on 3 sides through its walls its feature include : quick Temperature rising, Lasting warranty & constant Temperature.
- Better Precise Digital Temperature Controller Cum Indicator having Alarm facility at high Temp. easy operation.
- Kanthal A-1 Super quality Coil shaped Heaters duly wounded (in case of 900°C Temp.) & 1200°C range coil shaped open heater heavy gauge to stand continuous Temp. up to 1150°C.
- Silicon Rods are provided in case of High Temp. 1350°C high Temp. Furnace, supplied with Transformer unit & Pt-Pt RH Thermocouple its control manually & automatically the Amps. of silicon rods as per Temp. requirement
- Unique design of ventilation / Chimney provided at the back of the Muffle Furnace (For Fumes outlet)
Specifications :
| Interior (mm) | 100 x 100 x 225 x 4" x 4" x 9" | 125 x 125 x 250 x 5" x 5" x 10" | 150 x 150 x 300 x 6" x 6" x 12" | 175 x 175 x 415 x 7" x 7" x 19" | 200 x 200 x 300 x 8" x 8" x 12" |
| Heater Wattage "W" | 900°C/ 1.5 KW 1150°C/ 2.5 KW | 900°C/2.0 KW 1150°C/ 3.0 KW | 900°C/ 3.5 KW 1150°C/ 4.0 KW | 900°C/ 3.5 KW 1150°C/ 4.5 KW | 900°C/ 4.5 KW 1150°C/ 4.5 KW |
Applications
- For Calibration, Research Lab. Mining Industries, Industrial application heat Treatment of metals & Chinaware
Technical Parameters :
Control Panel : Mains, Load Indicator, Sunvic (ER) Regulator & Mains Indicator, Temp. Controller.
Temperature Range : Ambient to 900 °C ,Ambient to 1150 °C ,Ambient to 1350 °C
Temperature Stability : +-2°C or better
Duty Cycle : Continuous
Insulation : High Ceramic Blanket & Board Insulation
Housing Material : CRC / Mild Steel Sheet duly Powder Coated
Optional : Outer body of S.S 304 grade (Can be made against order)
Interior : Ceramic Board & Grooved Refractory Chamber as per Temp. Requirement
Power Consumption : Single Phase 220/230V, AC +- 10% 50Hz & 3 phase 440V
Optional : RS 232 Communication interface
LABORATORY HOT PLATE
FEATURES :
- Unique design of outer MS body having powder coated with gap of cast Iron top from the body
- Kanthal A-1 superior quality coil shaped heater duly embedded in the cast Iron plate to avoid heat loss having Cera Blanket Insulation
- All electrical connection are fire proof having sleeve for Heat/Temperature Protection
- Temp. Range is from Ambient to 300°C
- Temp. Controlled by sunvic Energy Regulator having marked 0-100, at minimum position it release minimum energy & at max. position it release max. energy
- Cast Iron top is having 7.5” Diameter having heat resistant Paint
- Optional : Can be supplied with Thermostat control in place of ER
Specifications :
| Size | 7.5" Dia | 10" x 12" x 6" (Rectangular) | 16" x 10" x 6" (Rectangular) | 18" x 10" x 6" (Rectangular) | 24" x 18" x 6" (Rectangular) |
| Heater Wattage "W" | 1.5 KW | 1.5 KW | 1.5 KW | 2.0 KW | 3.0 KW |
Applications
- Laboratory use : for educational Institute Hospital, Research Lab. Bio Tech Lab. & Pharmaceutical Industries
Technical Parameters :
Control Panel : Energy Regulator, Temp. Indicator & Load Indicator
Housing Material : CRC / MS Sheet duly Powder Coated
Optional : All S.Steel on request, thermostate in place of ER
Duty Cycle : Continuous
Power Consumption : 220/230V AC Supply 50Hz Single Phase
PARAFIN WAX EMBEDDING BATH
The bath has top made up of tinned copper/brass and body made up of mild steel duly enamel painted. Temperature is controlled thermostat from ambient to 100 degree c. with an accuracy of +- 0.5 degree c. Top made of copper or brass is chromium plated alongwith cups (wax pots). To work on 220/230 volts A.C. supply. Supplied with wax pots but without glass tubes.
- For 4 cups and 6 glass tubes
- For 6 cups and 8 glass tubes
- For 12 cups and 12 glass tubes
