Pharmaceutical, Quality Lab., Institute.
|Capacity (Liter)||3 Liter||5 Liter|
Housing Material : All S. Steel with Castor wheel
Power Consumption : 220/ 230V AC Supply 50Hz, Single Phase
Duty Cycle : Duty Cycle
Optional :Interior/ Exterior All S.Steel 304 Grade, Humidity Controller with Box for above unit, Timer Box for Above unit
Model – SISCO-RAP156

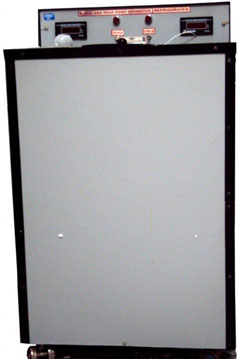

Cloud point and pour point are indicators of the lowest temperature of utility for petroleum products. The sample is periodically examined while it is being cooled in the cloud and pour point apparatus. The highest temperature at which haziness is observed (cloud point), or the lowest temperature at which movement of the oil is observed (pour point), is reported as the test result.
Conforms to the specifications of: ASTM D97, D2500, D5853, D6074, D6158; IP 15, 219; ISO 3015, 3016; DIN 51597; FTM 791-201; NF T 60-105.
Type Of Chamber : Mechanically Refrigerated Cooled Cascade Type.
Cooling Stage : Single stage Single Compressor.
Refrigerant : Cfc Free
Max Working Temperature :-30 Degree C.
Insulation : Dense Puff.Top Insulation Will Be Done By Polyurathene Sheet With Backelite Mounting.
Chamber Cover :Made Of Pp With Backelite Knob Having Centre Hole.
Mounting :Floor Mounted.
Movability :Mounted On Four Castor Wheel With Brakes On Two Front Wheel For Easy Movability.
Accuracy :+/- 2 Degree C
Readability :+/- 0.1 Degree C
Temperature Controller :Temperature is Controlled By Microprocessor Based Pid Temperature Controller.It is Having Dual Display With Lnt Or Siemens Contactor For Switching On & Switching Off The Heater.
Input Power Supply :230 V Ac, 50 Hz, 1 Phase With 10 Amp Current Rating.
Cooling Load :2.5 Kw
Thermocouple :Calibrated Rtd Type Thermocouple Will Be Provided Capable Of Measuring Upto -100 Deg C at Accuracy of +/- 0.1 Deg C
Construction :Double Walled Construction, Thermally Insulated With Puff for Better Performance during Continuous Operation. Powder Coated External Surface for Esthatic Appearance. Drain, Overflow and Fill Valve Will Be Provided
The Cloud and Pour Point apparatus is designed to automatically determine the
Cloud point, of petroleum products as per user defined test parameters. The
apparatus has a high degree of automation and the complete test cycle (Cloud
Point) is done automatically, without any human intervention. Needless to
say the precision, repeatability is ensured by using state of the art digital
circuits and imported sensors.
According to the specifications: IP 15 & IS 1448(P:10 )1970
|Capacity (L)||Heater Wattage "W"||Dimension (Approx)|
|1 Liter||150W||160 x 200 x 160|
|2 Liter||300W||160 x 200 x 160|
|5 Liter||500W||175 x 225 x 185|
Control Panel : Speed Regulator, Temp. Indicator & Mains
Housing Material : CRC/ MS sheet duly powder coated
Optional : All S. Sheet body having S. Steel Top Magnetic Stirrer without hot plate having different dimension
Duty Cycle : Continuous
Power Consumption : 220/230V AC supply 50Hz Single Phase
Model – SISCO-AR (With Circulatory Water Bath SISCO-CWB/AR)
The ABBE Refractometer with Circulatory Water Bath-: Designed for the Measurement of refractive index, average dispersion of liquids, solids and for determination of percentage sugar content in agues solutions. In view of high accuracy achieved with the use of even a few drops of liquid or substance under test the refract metric measurement present a convenient and economical method of testing. They find their applications wherever the components of mixture show various indexes of refraction. The refract metric measurements are applied to research and control works in chemical and food industry.
Model – SIS-CWB/AR
Double prisms are heated by a double jacketed water bath in which warm water under 70°C circulates. The temperature of the water can be adjusted and read by the thermometer fitted on the double prism.
We have vast knowledge and experience that helps us to offer an exclusive assortment of Paraffin Wax Dispenser. Widely used for rapid melting of pelletized wax, these also have digital temperature control to provide accurate temperature control of the molten wax. OurParaffin Wax Dispenser is designed from top quality stainless steel at our state of the art machining facility, by a team of veteran engineers.
This Paraffin Wax Dispenser is highly functional with its special construction. This Paraffin Wax Dispenser is double walled unit with both inner and outer made of stainless steel. The gap between the two walls is filled with high-grade glass wool to avoid thermal loss.
Temperature from ambient to 70 deg C is controlled by hydraulic type EGO/JUMO GERMAN thermostat. Tap system is provided for the outlet of molten paraffin wax.
UV Cabinet offered find application for viewing of paper as well as thin layer chromatograms as well as visualization of test objectives under Tubes with long wave length of 365 mm, short wave length of 254 mm as desired by the customers. For ensuring efficient viewing interface, these are provided with ultraviolet lamp for observing fluorescent effect chromatograms. These also come with enclosed viewing space that helps in eliminating external light interface.
Usable for viewing paper and thin layer chromatograms For visualization of test objectives under Tubes having long wave length (365 mm), short wave length (254 mm) as desired Use with ultraviolet lamp for observing fluorescent effect chromatograms etc Supplied with 3 tubes to work on 230 volts A.C only Provides an enclosed viewing space which eliminates external light interface Control switches mounted on top of the unit This self contained unit is designed for easy viewing and making of chromatograms thermostat. Tap system is provided for the outlet of molten paraffin wax.
This apparatus is used for determination of Flash Point & Fire Point of Petroleum products except fuel oil with open flash 80 deg C as per specification IP 36/57, IS 1448 (P:69) 1969 and ASTM-D-92-67.
The apparatus consists of a cup, heating plate, and thermometer clip and test flame attachment with swivel joint for passing over liquid surface in the prescribed manner; heater is controlled by means of Energy Regulator for operation on 230 volts, 50Hz, AC single phase.
For Research Lab. Pharmaceutical Chemical/ Glass Paints Educational Institutes
|Capacity (L)||250ml & 500ml||250ml & 500ml|
|Heater "W" Wattage||200/250W||200/250W|
Temperature Range : Ambient to 300°C
Power Consumption : 220/230V AC supply 50Hz
Housing Material : CRC/ MS Sheet body duly Powder Coated
Insulation : Mineral/ Glass wool
Optional :Double Colour body/ Top (On Customer request)
Control Panel : ER 3/6 Nos. (As per requirement), 6 Nos. Toggle Switch, 6 Nos. Temperature Indicator
(IP 34, ASTM-D-93-58T, IS 1448(Pt:I) 1960 & IS 1209-1958).
This is widely used for determination of closed cup Flash Point of Fuel Oil, cut back asphalts, other viscous material and suspension of solids having a flash point about 490C(1200F).The apparatus serve the purpose according to IP 34, ASTM-D-93-58T, IS-1448(P:I) 1960(P:21) and IS 1209/1958 method B. The apparatus consists of Brass Test cup with handle removable cup cover with spring operated rotating shutter having piolet jet, stirrer with flexible shaft. The assembly rests in Air Bath which is covered with Dome shape metal top. The cup is fitted with insulated handle and locking arrangement near cup plange. The assembly rests on a round shaped heater with different temperature regulation system suitable for operation on 220 Volts AC mains.
SISCO-1477. Pensky Marten Flash Point Apparatus with Gas test jet device electric heated with voltage varriac copper coil type fitted with electric motorised stirrer & Digital Indicator
( BUCHI Type ) ‘SISCO/BRE’
Consist of an evaporating Flask rotated by a non-sparking induction Motor in a heating water Bath. Vacuum Distillation of solvent at high and low Temperature is achieved quickly and efficiently by use of speed controller provided. It prevents foaming a vacuum and bumping of the liquid. Other application includes vacuum drying of powders and slides. Low Temperature Vacuum distillation of heat sensitive compounds. The introduction tube permits continuous feed of the liquids into evaporating flask and also distillation under Controlled atmosphere. The evaporating Flask, Pear shaped to give a larger surface area for evaporation, is clamped to a glass duct which goes through the drive unit and protrudes 120 mm. Into the condenser. The Condenser is screwed into the drive unit and contains a Teflon inlet feed tube at its upper end. Condenser is fitted with Standard B-19 joint at top and spherical joint S-35 at the bottom for receiver flasks.
Drive unit with F. H. P. Motor, Speed Regulator, Working on 220Volts A. C. 50 Cycles, Single Phase.
Stand : Heavy Cast Iron Stand with Steel Rod. Evaporating Flask 1 Liter (approx.) with Standard B-29 joint. Glass Duct All Glass connector cone with B-29, Connected Evaporating Flask and Protrudes in the condenser. With Clip to hold the Evaporating Flask with Glass Duct. Condenser Double Coil Condenser for water Circulation, fitted with Vacuum Connection and standard S-35, ball joint for Receiving Flask with Condenser. Receiving Flask 1 Liter Capacity with Standard S 35 Ball Joint.
Ball Joint clamp : To hold the Receiving Flask with Condenser.
High Vacuum Cock : Two way stop-for the feeding Tube and Vacuum Release. Feed Tube
Capacity 1 Liter, 3 Liter & 5 Liter
Water Bath Thermostate Controlled or Digital Controlled. As per requirement. Lifting Jack (Manual) , Vaccum Grease
For Pharmaceutical Institute, Research Lab use.
Wax bath is extensively used as a heat and cold therapy equipment used to get relief from arthritis and rheumatism pain. Wax baths work on the benefits of thermal therapy on human body. It is a physical treatment for relief from particular type of pains. The equipment is usually used in hospitals, clinics and rehab centers.
Wax bath hospital equipments manufactured by us are popular for their quality and results. We have a team of expert working on the manufacturing and designing parameters.
Made out of heavy duty rust free stainless body with four castors to make it mobile, The heat is controlled by inbuilt thermostat Can be operated on both 220-230 volts and is fitted with two tanks for heating purpose.
